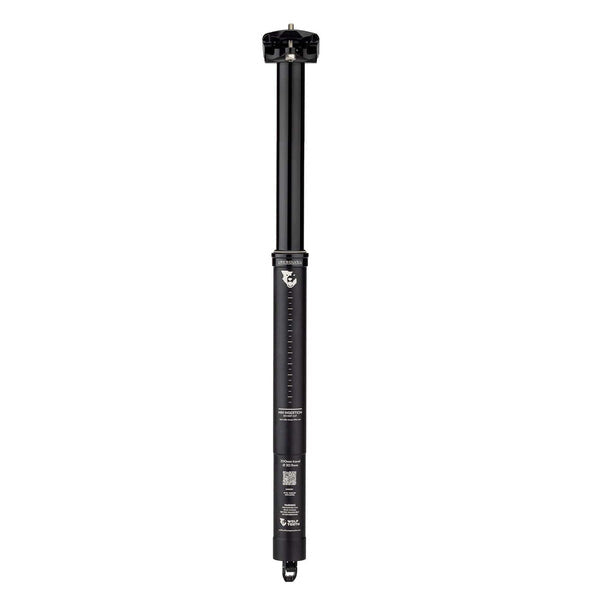

Resolve Dropper Post

Compatible with bike frames that use 30.9mm or 31.6mm diameter seatposts with internal cable routing for dropper posts. A 31.6mm diameter post with a seatpost shim can be used for bike frames that use 34.9mm diameter seatposts. Shims are NOT included with the seatpost. The minimum insertion depth is clearly marked on the Resolve Dropper Post lower tube and varies between 90 and 140 mm. Always follow the minimum insertion depth recommended by your bike frame manufacturer if it is greater than the number marked on your dropper post. Minimum insertion depth varies by travel length and is specified on the The longest travel dropper post that will fit you and your bike can be determined using our dropper post length calculator tool. If your dropper lever routes the cable head at the remote lever on handlebars you will need a knarp cable barrel found in our replacement parts. Compatible with any ebike that uses a conventional dropper post mounting and actuating system. We recommend using the ReMote Pro Dropper Lever NOTE: XZN-Socket Tool required to service Resolve Dropper Post Included in box: Dropper seatpost, cable and housing kit, cable barrel Weight (post only): 125 x 30.9 - 440g, 125 x 31.6 - 456g, 160 x 30.9 - 490g, 160 x 31.6 - 513g, 200 x 30.9 - 544g, 200 x 31.6 - 563g Stack Height (Extended Length - Travel): 32mm Saddle Rail Clamp Bolt Torque: 6Nm Seatpost Clamp Max Torque: 30.9mm - 4 Nm, 31.6mm - 5 Nm Rider Weight Limit: 120 kg / 264 lbs For more details and compatibility information for this product please visit https://www.wolftoothcomponents.com/
