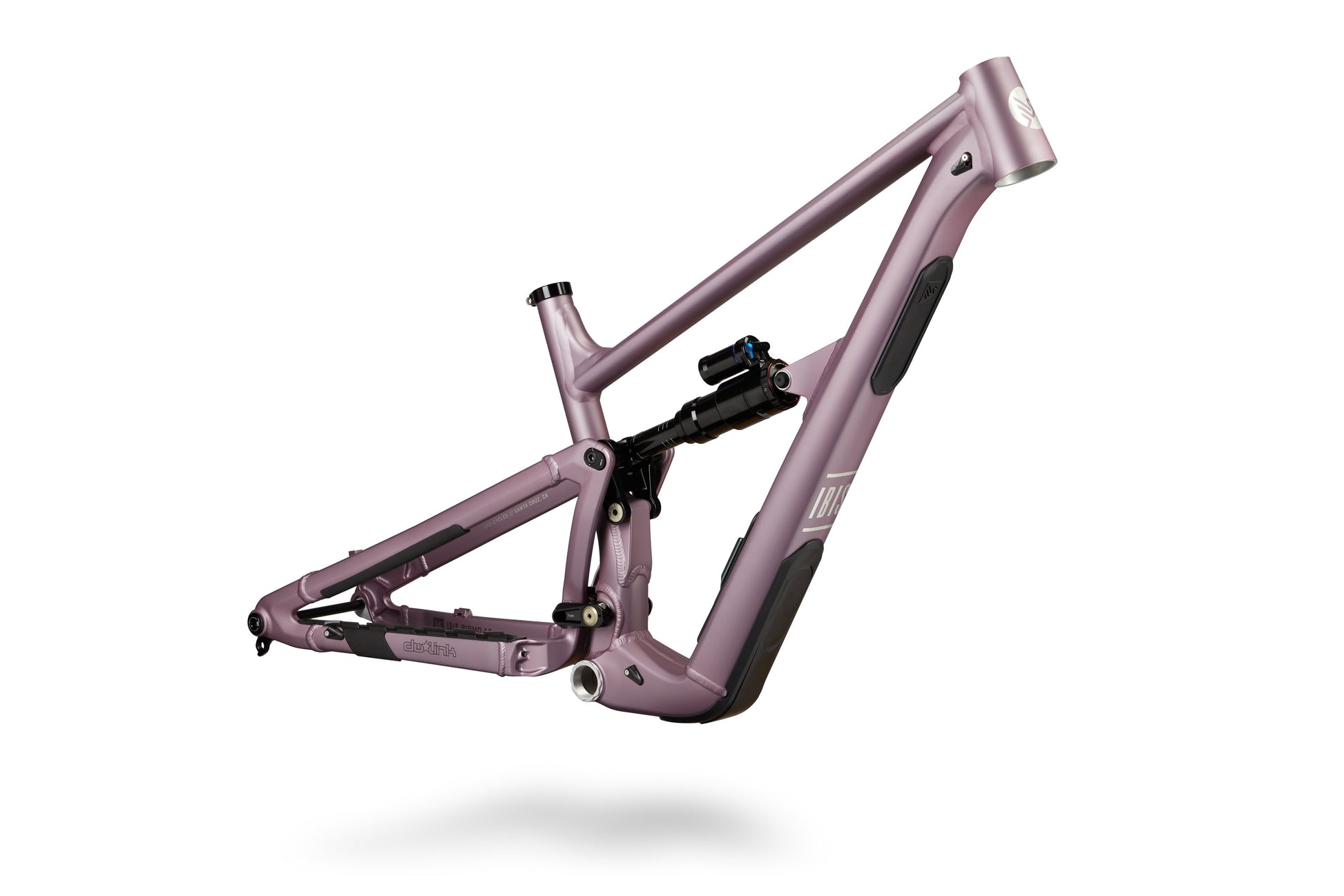

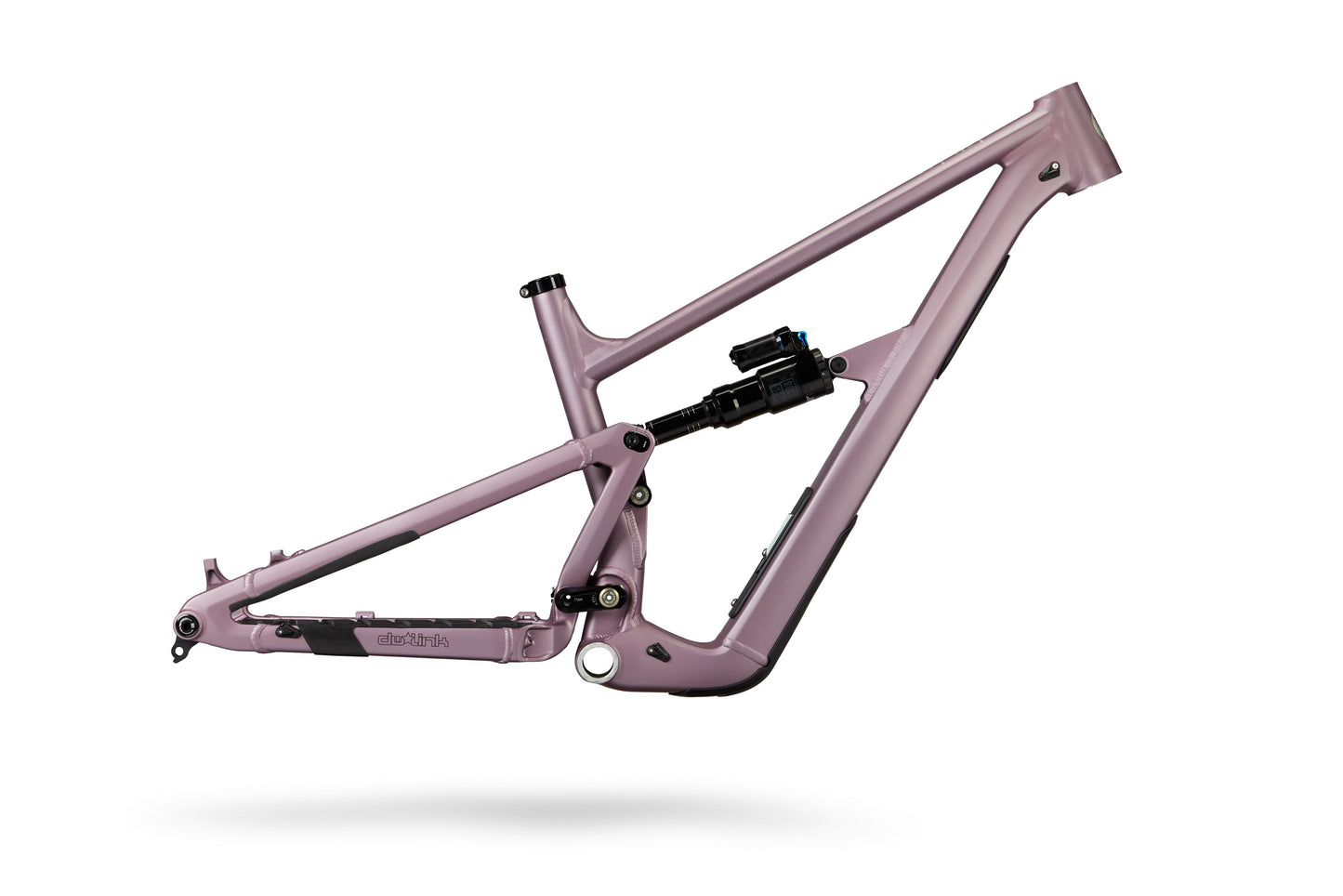

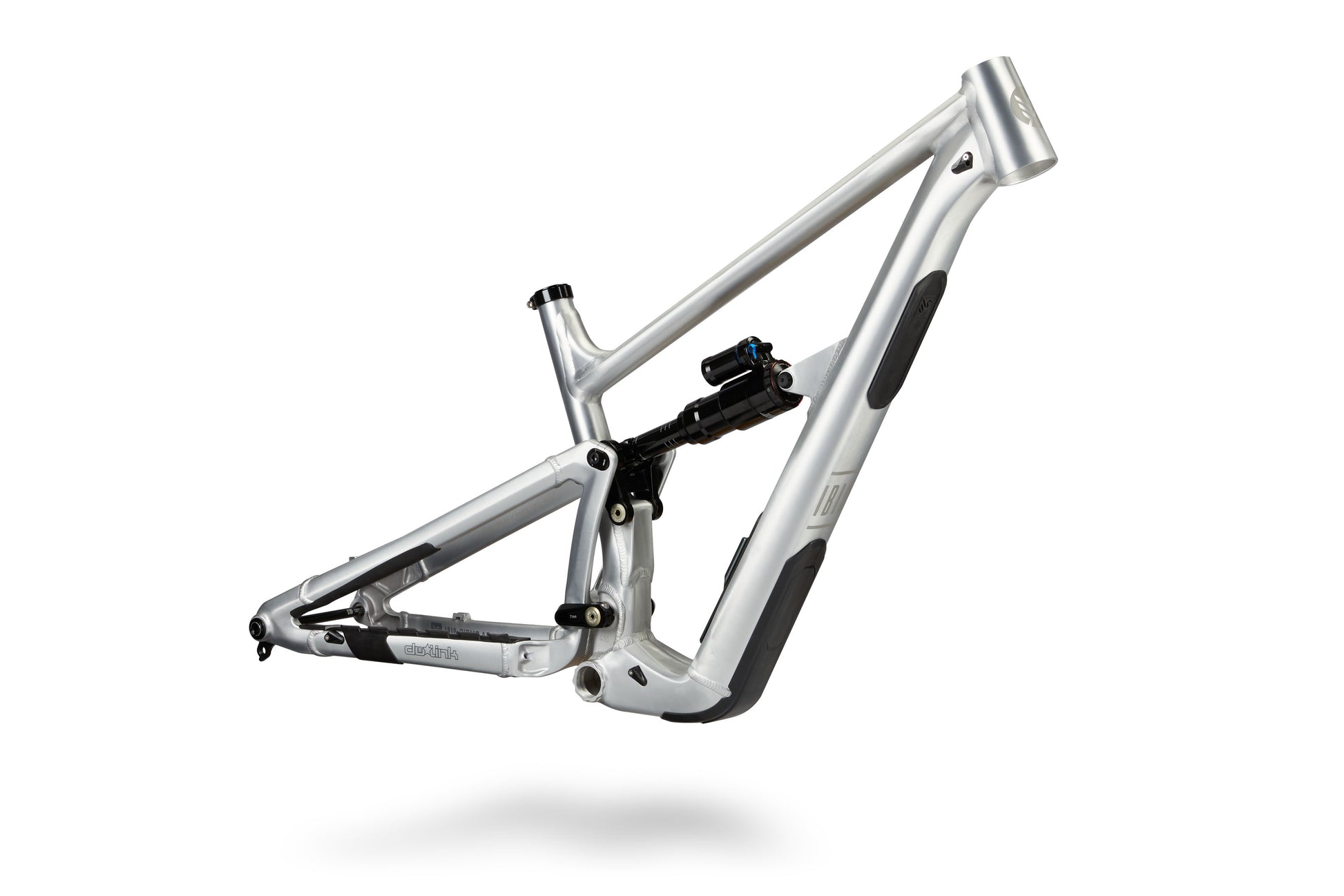

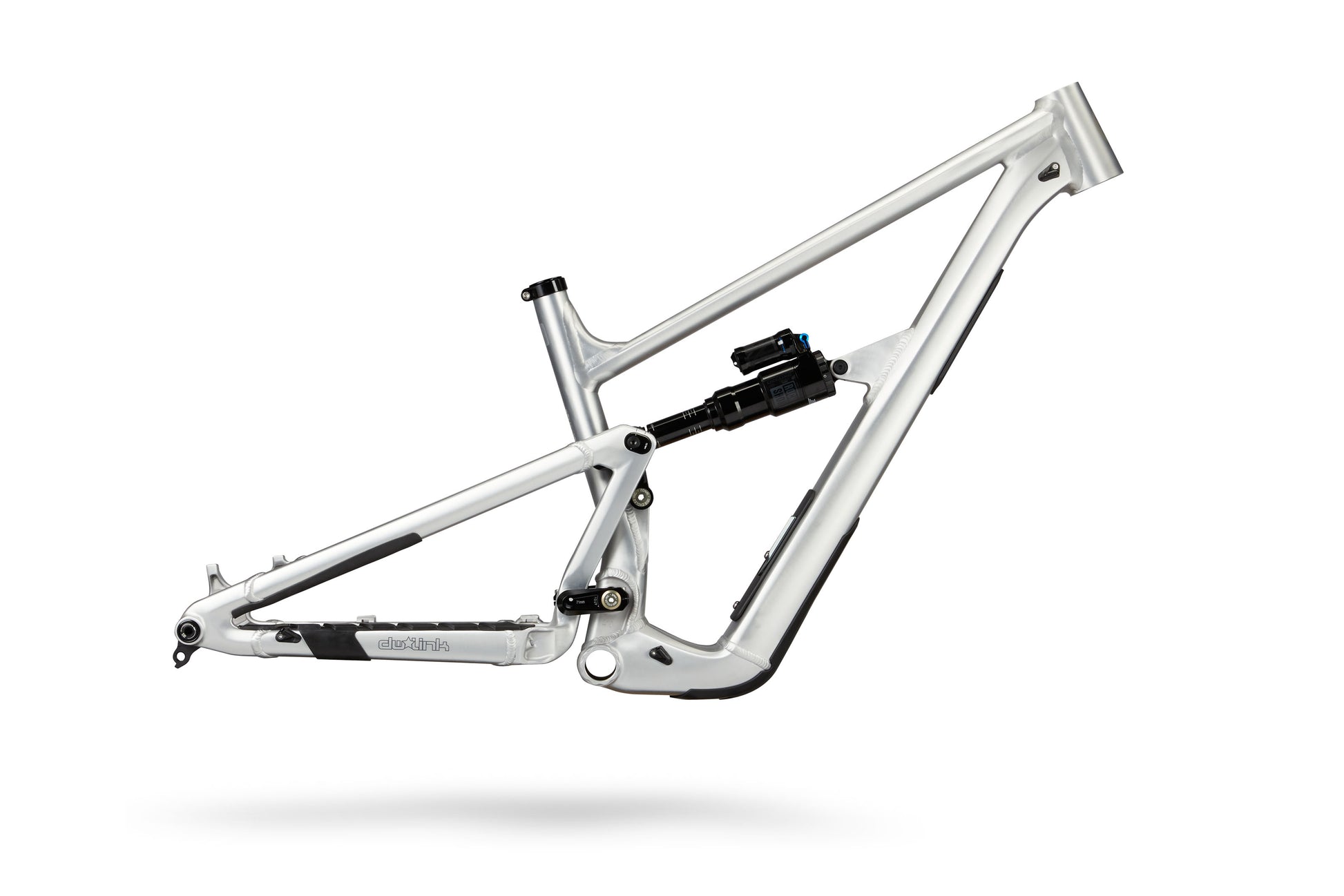

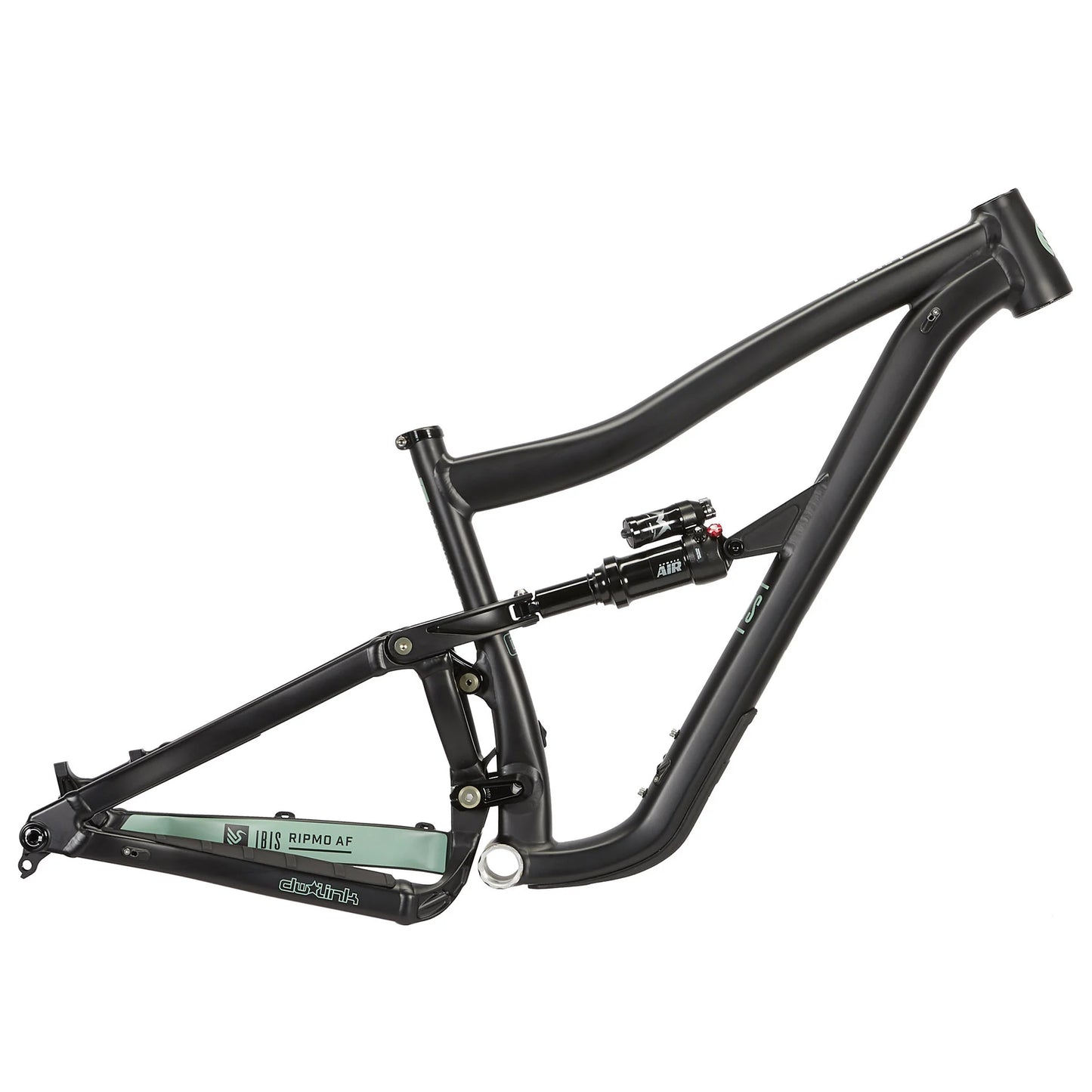

Ibis Ripmo AF v2 | Frame
Ibis Ripmo AF v2 | Frame
Couldn't load pickup availability
Ibis Ripmo AF Frame | Big Travel, Built to Last
The updated Ripmo AF V2 frame is your blank canvas for building a big-mountain brawler, freeride rig, or high-value enduro weapon. Featuring 150mm of DW-Link rear travel, coil and air shock compatibility, and the same aggressive geometry and flip-chip adjustability as its carbon sibling, this aluminum frame is ready to handle the steepest descents and the chunkiest climbs.
Now with internal frame storage, universal derailleur hanger, and a new “Extra Medium” size to dial in your fit, the Ripmo AF is more capable — and more customizable — than ever before.
Why Choose the Ripmo AF V2 Frame?
✅ 150mm Rear Travel / 160mm Front – Long travel for big terrain
✅ Flip Chip Geometry – Run MX (27.5 rear) or full 29” setup
✅ Coil or Air Compatible – Custom tune your ride feel
✅ Progressive Geometry – 64.5° head angle, up to 77.5° seat tube
✅ UDH Compatible – Universal Derailleur Hanger for future-proof drivetrains
✅ Internal Frame Storage – With two Ibis/Cotopaxi storage bags included
✅ Threaded Bottom Bracket – Durable and easy to maintain
✅ Boost Spacing (148mm) – Modern wheel & tire compatibility
✅ Lifetime Warranty – Frame & bushings included
Frame Specs
🔹 Material: Aluminum (Ripmo AF V2)
🔹 Rear Travel: 150mm DW-Link
🔹 Shock Compatibility: Coil & Air (230x60mm)
🔹 Wheel Size:
– Small/Medium: MX (29" front / 27.5" rear)
– XM–XL: 29" front & rear
🔹 Flip Chip: Adjustable for MX or 29” rear wheel
🔹 Head Angle: 64.5°
🔹 Seat Tube Angle: 76.5°–77.5° (Size-specific)
🔹 Bottom Bracket: Threaded (73mm BSA)
🔹 Brake Mount: 180mm post mount (up to 220mm compatible)
🔹 Dropper Diameter: 34.9mm
🔹 Chainline: 55mm
🔹 Derailleur Hanger: SRAM UDH
🔹 Internal Frame Storage: Yes – two bags included
🔹 ISCG 05 Tabs: Compatible (mount sold separately)
What’s Included?
✔️ Ibis Ripmo AF V2 Frame
✔️ RockShox Super Deluxe Select+ Shock (230x60mm)
✔️ Internal Storage Bags (x2)
✔️ Lifetime Warranty – Frame & bushings
